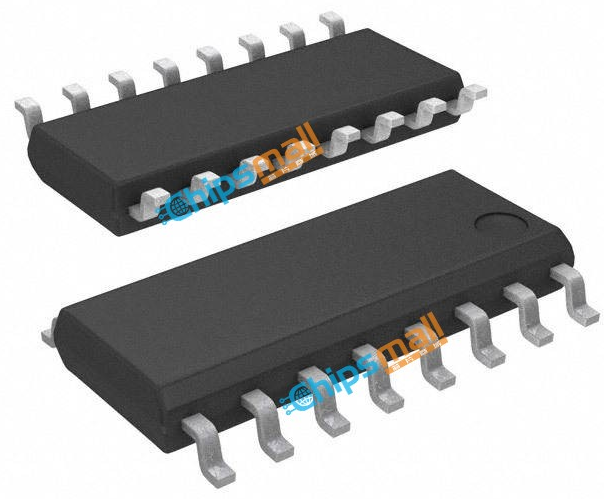

TLC7524CDR Description
The TLC7524C is CMOS, 8-bit, digital-to-analog converters (DACs) designed for easy interface to most popular microprocessors.
The devices are 8-bit, multiplying DACs with input latches and load cycles similar to the write cycles of a random access memory. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, which produce the highest glitch impulse. The devices provide accuracy to 1/2LSB without the need for thin-film resistors or laser trimming, while dissipating less than 5mW typically.
Featuring operation from a 5V to 15V single supply, these devices interface easily to most microprocessor buses or output ports. The 2- or 4-quadrant multiplying makes these devices an ideal choice for many microprocessor-controlled gain-setting and signal-control applications.
The TLC7524C is characterized for operation from 0°C to 70°C.
TLC7524CDR Features
Easily Interfaced to Microprocessors
On-Chip Data Latches
Monotonic Over the Entire A/D Conversion Range
Segmented High-Order Bits Ensure Low-Glitch Output
Interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524
Fast Control Signaling for Digital Signal-Processor Applications Including Interface With TMS320
CMOS Technology

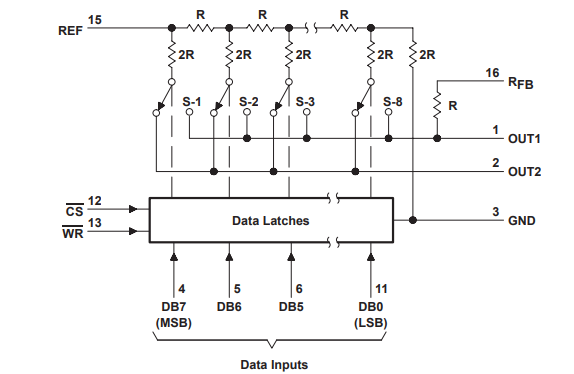

TLC7524CDR Functional Block Diagram

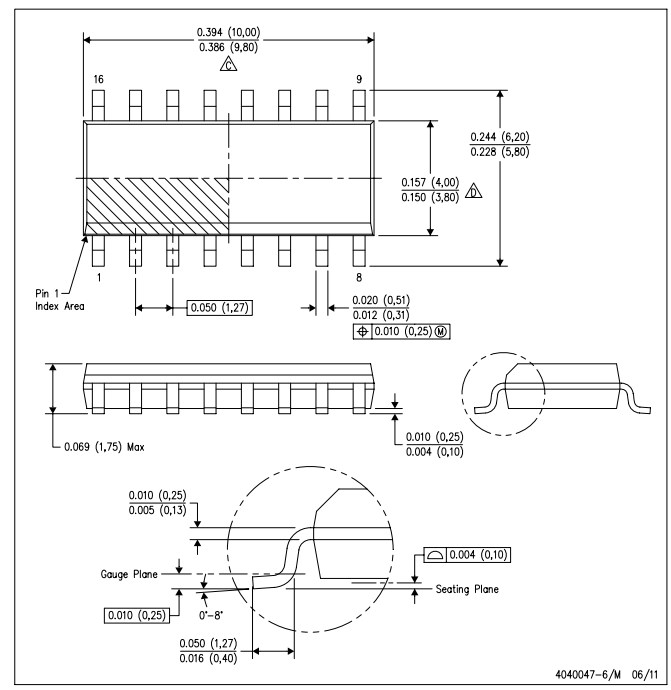

TLC7524CDR MeChanical Data

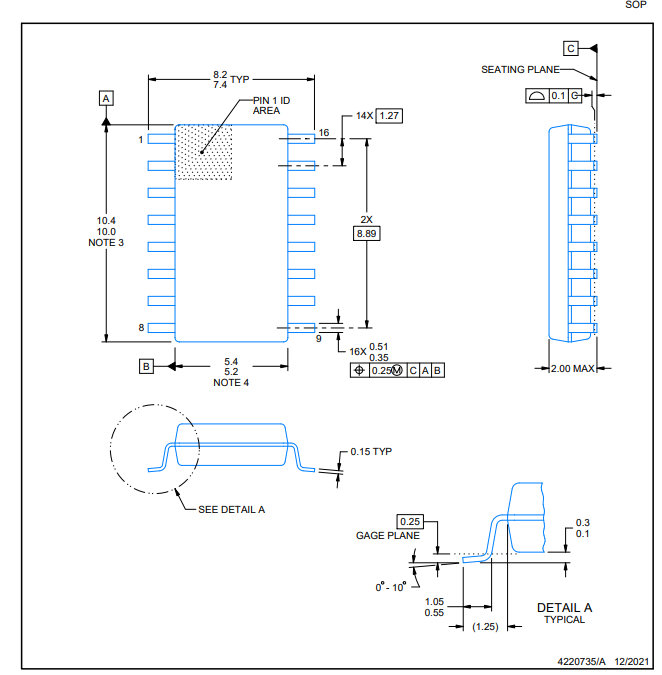

TLC7524CDR Package Outline
TLC7524CDR Product Parameter
|
Manufacturer |
Texas |
Manufacturer's Part # |
TLC7524CDR |
|
Categories |
Integrated Circuits |
Sub-Categories |
Data Acquisition - Digital to Analog Converters (DAC) |
|
Part Status |
Active |
Number of Bits |
8 |
|
Number of D/A Converters |
1 |
Settling Time |
100ns |
|
Output Type |
Current - Unbuffered |
Differential Output |
Yes |
|
Data Interface |
Parallel |
Reference Type |
External |
|
Voltage - Supply, Analog |
5V 14.5V~15.5V |
Voltage - Supply, Digital |
5V 14.5V~15.5V |
|
INL/DNL (LSB) |
±0.5 (Max), ±2.5 (Max) |
Architecture |
R-2R |
|
Operating Temperature |
0°C~70°C |
Package / Case |
16-SOIC (0.154, 3.90mm Width) |
|
Supplier Device Package |
16-SOIC |
Mounting Type |
Surface Mount |
|
Packaging |
Tape & Reel (TR) |
RoHS Status |
ROHS3 Compliant |
|
Number of Pins |
16 |
Number of Terminations |
16 |
|
Subcategory |
Other Converters |
Technology |
CMOS |
|
Terminal Position |
DUAL |
Terminal Form |
GULL WING |
|
Number of Functions |
1 |
Supply Voltage |
5V |
|
Base Part Number |
TLC7524 |
Pin Count |
16 |
|
Max Supply Voltage |
15.5V |
Min Supply Voltage |
4.75V |
|
Converter Type |
D/A CONVERTER |
Supply Type |
Single |
|
Resolution |
1 B |
Sampling Rate |
10 Msps |
|
Power Consumption |
5mW |
Integral Nonlinearity (INL) |
0.5 LSB |
|
Input Bit Code |
BINARY, OFFSET BINARY |
Conversion Rate |
10 Msps |
|
Width |
3.91mm |
Lead Free |
Lead Free |
|
Factory Lead Time |
6 Weeks |
Lifecycle Status |
ACTIVE (Last Updated: 3 days ago) |
|
Surface Mount |
yes |
Weight |
155.100241mg |
|
Pbfree Code |
yes |
Peak Reflow Temperature (Cel) |
260 |
|
Operating Supply Voltage |
15V |
Nominal Supply Current |
2mA |
|
Number of Converters |
1 |
Differential Nonlinearity |
0.5 LSB |
|
Height |
1.75mm |
Length |
9.9mm |
|
Thickness |
1.58mm |
Contact Plating |
Gold |
|
Radiation Hardening |
No |
|
|
