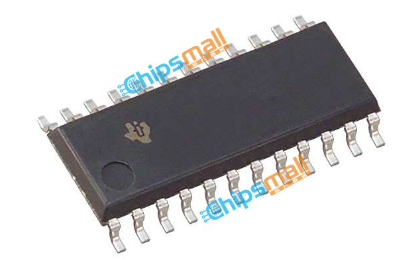

SN74ALS874BNSR Description
These dual 4-bit D-type edge-triggered flip-flops feature 3-state outputs designed specifically as bus drivers. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
The edge-triggered flip-flops enter data on the low-to-high transition of the clock (CLK) input.
The SN54ALS874B have clear (CLR) inputs and noninverting Q outputs. The SN54ALS874B is characterized for operation over the full military temperature range of –55°C to 125°C.
Its ease of use, small form factor, independent control, and three-state outputs make it an attractive option for many circuit designs.
The device uses positive-edge clocking to transfer data from the input to output.
The latch is transparent, meaning if the enable signal is active, any changes to the input will immediately appear at the output.
The three-state output feature allows multiple devices to share a common bus without interfering with each other.
The device comes in a small SOIC package that is suitable for use in compact digital systems.
Overall, the SN74ALS874BNSR is a versatile and reliable storage device that has broad application across a range of digital systems. Its ease of use, small form factor, independent control, and three-state outputs make it an attractive option for many circuit designs.

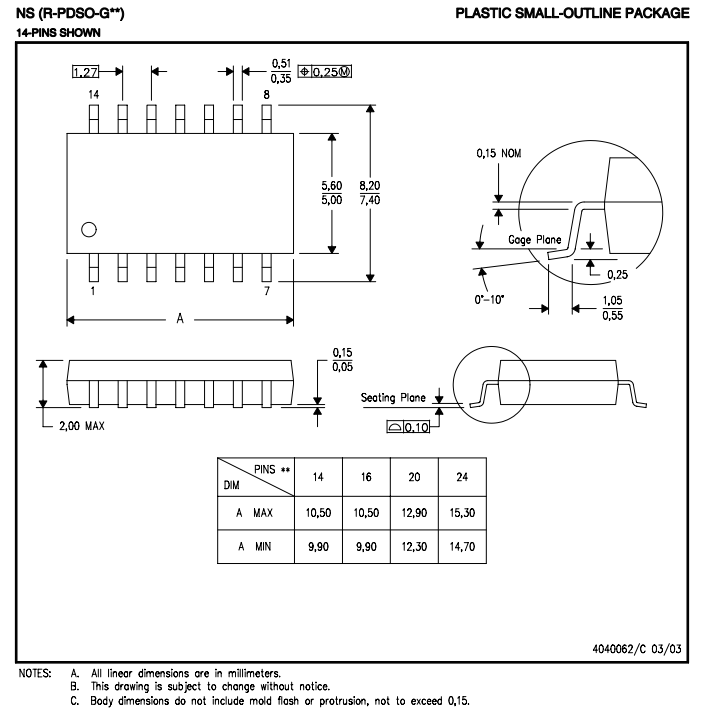

SN74ALS874BNSR Mechanical Data
SN74ALS874BNSR Features
Octal (8-bit) D-type transparent latch with three-state outputs
Independent controls for each latch
Compatible with standard TTL logic levels
Operating voltage range of 4.5V to 5.5V
SN74ALS874BNSR Application
This device is commonly used in digital systems as a storage element or as a buffer to isolate a load from a driving circuit. Its small size and ease of use make it popular for various applications in digital circuits, such as memory address decoding, data transfer, and frequency division.

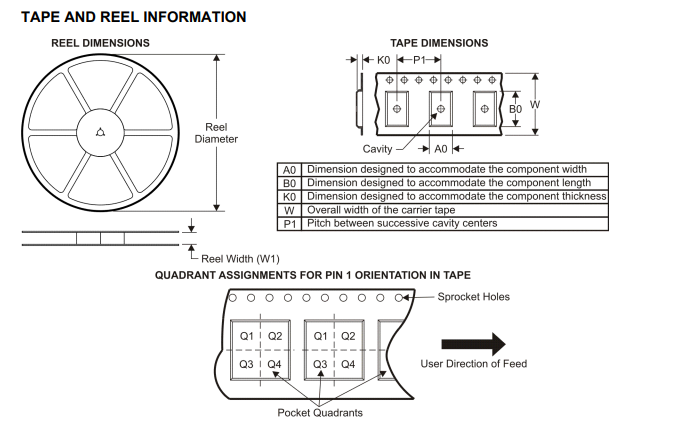

SN74ALS874BNSR Package Material Information
SN74ALS874BNSR Product Parameter
|
Manufacturer |
Texas |
Manufacturer's Part |
SN74ALS874BNSR |
|
Categories |
Integrated Circuits (ICs) |
Sub-Categories |
Logic - Flip Flops |
|
Series |
74ALS |
Part Status |
Obsolete |
|
Function |
Master Reset |
Type |
D-Type |
|
Output Type |
Tri-State, Non-Inverted |
Number of Elements |
2 |
|
Number of Bits per |
4 |
Clock Frequency |
30MHz |
|
Max Propagation Delay |
14ns @ 5V, 50pF |
Trigger Type |
Positive Edge |
|
Current - Output High |
2.6mA, 24mA |
Voltage - Supply |
4.5V ~ 5.5V |
|
Current - Quiescent (Iq) |
21mA |
Input Capacitance |
- |
|
Operating Temperature |
0°C ~ 70°C (TA) |
Mounting Type |
Surface Mount |
|
Package / Case |
24-SOIC (0.209", 5.30mm Width) |
|
|
SN74ALS874BNSR Manufacturer
Texas Instruments is a semiconductor multinational company in Texas, USA. It is famous for developing, manufacturing, and selling semiconductor and computer technology. It is mainly engaged in innovative digital signal processing and analog circuits. In addition to the semiconductor business, it also provides solutions including sensing and control, educational products and digital light source processing. Texas Instruments (TI) is headquartered in Dallas, Texas, USA, and has manufacturing, design or sales organizations in more than 25 countries.
