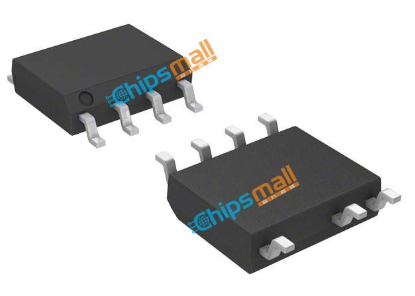

UCC28712DR Description
The UCC28712DR is made by Texas Instrument, a primary-side regulated flyback controller for high-density AC/DC power supplies. This integrated circuit (IC) is designed to work with both isolated and non-isolated AC/DC power sources, making it suitable for use in a wide range of applications.
The UCC28712DR includes several features that make it an attractive option for power supply designers. For example, it has low standby power consumption, which helps to meet energy efficiency standards. It also includes advanced protection features such as overvoltage protection, overcurrent protection, and overtemperature protection, which help to ensure safe and reliable operation.
The UCC28712DR uses primary-side regulation (PSR) to regulate the output voltage, which simplifies the design of the power supply by eliminating the need for optocouplers or secondary-side feedback circuitry. This can lead to a smaller, more efficient, and lower cost power supply.

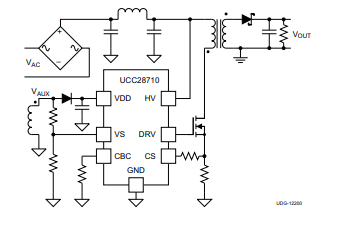

UCC28712DR Simplified Application
UCC28712DR Pin Configuration
UCC28712DR Application
USB-Compliant Adapters and Chargers for Consumer Electronics
Smart Phones
Tablet Computers
Cameras
Standby Supply for TV and Desktop
White Goods

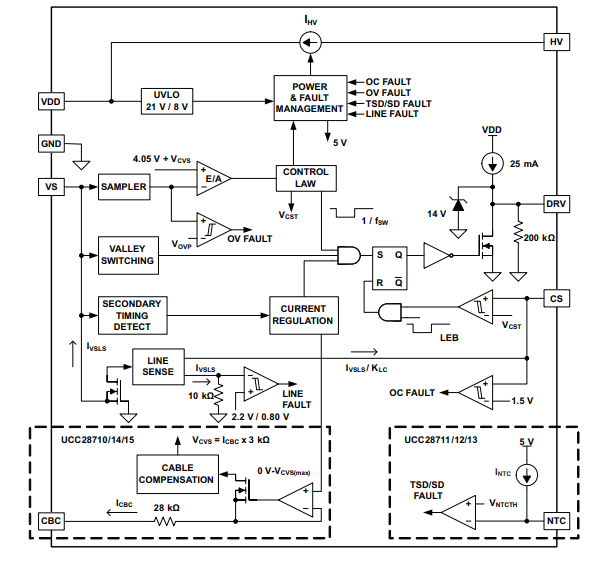

UCC28712DR Functional Block Diagram
UCC28712DR Features
Features
< 10-mW No-Load Power
Primary-Side Regulation (PSR) Eliminates OptoCoupler
±5% Voltage and Current Regulation Across Line and Load
700-V Start-Up Switch
100-kHz Maximum Switching Frequency Enables
High-Power Density Charger Designs
Resonant Valley-Switching Operation for Highest
Overall Efficiency
Frequency Jitter to Ease EMI Compliance
Wide VDD Range Allows Small Bias Capacitor
Clamped Gate-Drive Output for MOSFET
Overvoltage, Low-Line, and Overcurrent
Protection Functions
Programmable Cable Compensation (UCC28710) NTC Resistor Interface (UCC28711, UCC28712 and UCC28713) with Fixed Cable Compensation Options
SOIC-7 Package

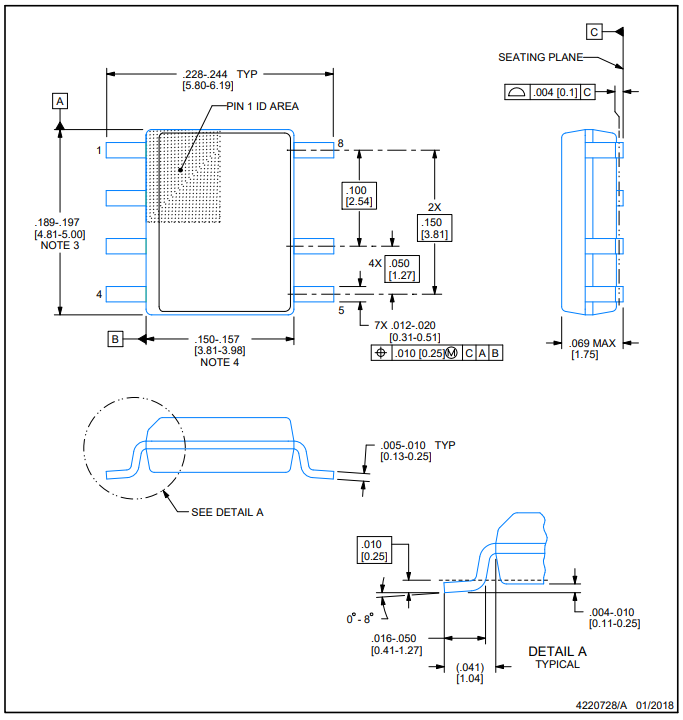

UCC28712DR Package Outline
UCC28712DR Product Parameter
|
Manufacturer |
Texas |
Manufacturer's Part |
UCC28712DR |
|
Categories |
Integrated Circuits (ICs) |
Sub-Categories |
PMIC - AC DC Converters, Offline Switchers |
|
Series |
- |
Part Status |
Active |
|
Output Isolation |
Isolated |
Internal Switch(s) |
No |
|
Voltage - Breakdown |
- |
Topology |
Flyback |
|
Voltage - Start Up |
21v |
Voltage - Supply (Vcc/Vdd) |
9V ~ 35V |
|
Duty Cycle |
- |
Frequency - Switching |
680Hz ~ 100kHz |
|
Power (Watts) |
- |
Fault Protection |
Current Limiting, Over Voltage |
|
Control Features |
- |
Operating Temperature |
-40°C ~ 125°C (TJ) |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width), 7 Leads |
Supplier Device Package |
7-SOIC |
|
Mounting Type |
Surface Mount |
|
|
UCC28712DR Manufacturer
Texas Instruments is a semiconductor multinational company in Texas, USA. It is famous for developing, manufacturing, and selling semiconductor and computer technology. It is mainly engaged in innovative digital signal processing and analog circuits. In addition to the semiconductor business, it also provides solutions including sensing and control, educational products and digital light source processing. Texas Instruments (TI) is headquartered in Dallas, Texas, USA, and has manufacturing, design or sales organizations in more than 25 countries.
