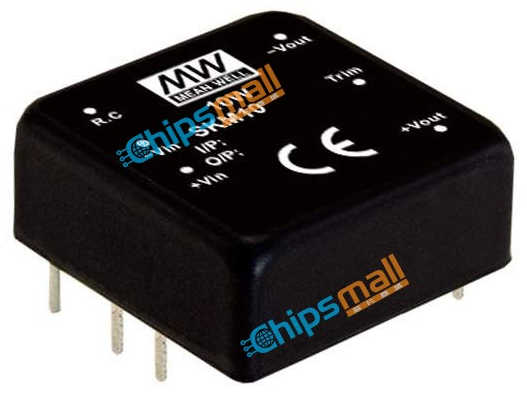

SKM10A-05 Description
SKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"X "1 package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5 KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 and wide output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
SKM10A-05 Features
DIP 1"x1" package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 90%
Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output ( 10%)±
3 years warranty
External Output Trimming

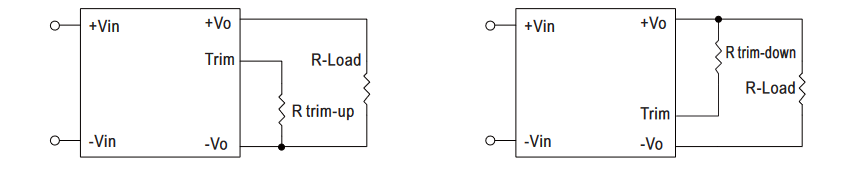

In order to trim the voltage up or down one needs to connect the trim resistor either between the trim pin and -Vo for trim-up and between trim pin and +Vo for trim-down. The output voltage trim range is ±10%.
SKM10A-05 Application
Telecom datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Detector
Data switch

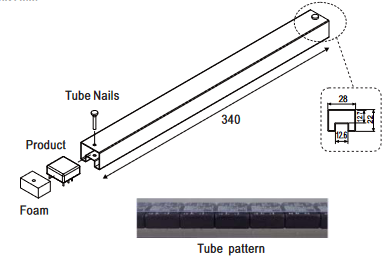

SKM10A-05 Packing
SKM10A-05 Product Parameter
|
Manufacturer |
MEAN WELL |
Manufacturer's Part # |
SKM10A-05 |
|
Categories |
Power Supplies - Board Mount |
Sub-Categories |
DC DC Converters |
|
Series |
SKM10 (10W) |
Part Status |
Active |
|
Type |
Isolated Module |
Numbers of Outputs |
1 |
|
Voltage - Input (Min) |
9V |
Voltage - Input (Max) |
18V |
|
Voltage - Output 1 |
5V |
Current - Output (Max) |
2A |
|
Power (Watts) |
10W |
Voltage - Isolation |
1500V |
|
Applications |
ITE (Commercial) |
Operating Temperature |
-40°C~85°C With Derating |
|
Efficiency |
85% |
Mounting Type |
Through Hole |
|
Package / Case |
6-DIP Module |
Size / Dimension |
1.00Lx1.00W x 0.40 H 25.4mmx25.4mmx10.2mm |
|
Factory Lead Time |
11 Weeks |
Packaging |
Tube |
|
Feature |
Remote On/Off, OCP, OVP, UVLO |
Number of Terminations |
6 |
|
Terminal Position |
DUAL |
Output Voltage |
5V |
|
Technology |
HYBRID |
Number of Functions |
1 |
|
Input Voltage-Nom |
12V |
Length |
25.4mm |
|
Width |
25.4mm |
Surface Mount |
NO |
|
Trim/Adjustable Output |
YES |
|
|
