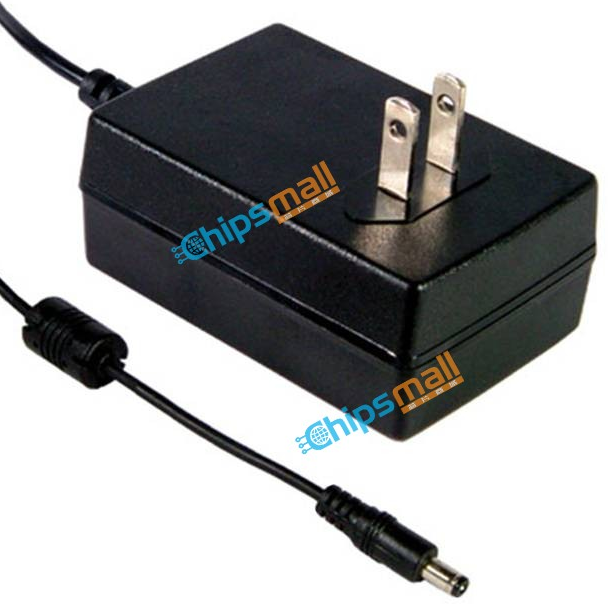

GST18U28-P1J Description
GST18U is a highly reliable, 18W wall-mounted style single-output green adaptor series. This product is a class power unit (no FG), equipped with a 2-Pin standard USA AC power plug, adopting the inputⅡ range from85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W, GST18U is compliant with USA EISA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.
GST18U28-P1J Features
Global certificates
Universal AC input / Full range
2 pole USA plug, Class power unitⅡ
No load power consumption< 0.075W
Energy efficiency Level VI
Comply with EISA 2007/DoE and NRCan
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
℃-30~+70 wide range working temperature
LED indicator for power on
3 years warranty

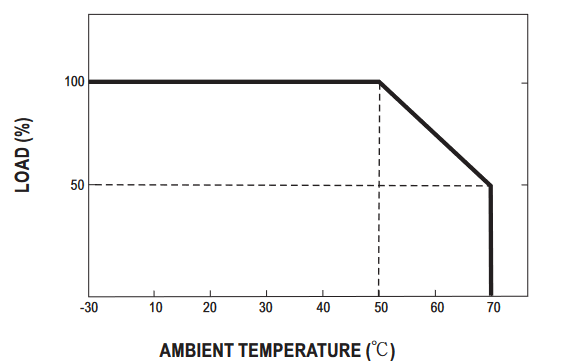

Derating Curve

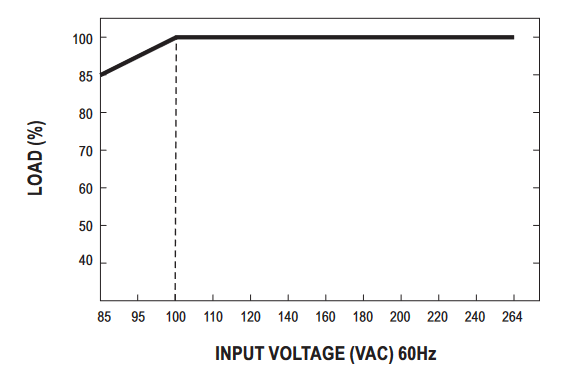

Static Characteristics
GST18U28-P1J Applications
Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments
GST18U28-P1J Product Parameter
|
Manufacturer |
MEAN WELL |
Manufacturer's Part # |
GST18U28-P1J |
|
Categories |
Power Supplies - External/Internal (Off-Board) |
Sub-Categories |
AC DC Desktop, Wall Adapters |
|
Series |
GST18U (18W) |
Part Status |
Active |
|
Region Utilized |
North America |
Form |
Wall Mount (Class II) |
|
Input Type |
Fixed Blade |
Voltage - Input |
85V~264VAC |
|
Voltage - Output |
28V |
Current - Output (Max) |
640mA |
|
Power (Watts) |
18W |
No Load Power Consumption |
75mW Max |
|
Polarization |
Positive Center |
Applications |
ITE (Commercial) |
|
Efficiency |
Level VI |
Operating Temperature |
-30°C~70°C |
|
Output Connector |
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
Size / Dimension |
3.11Lx2.13W x 1.30 H 79.0mmx54.0mmx33.0mm |
|
Approvals |
BSMI, CB, cULus, EAC |
Cord Length |
70.9 1.80m |
|
Input Connector |
NEMA 1-15P |
Factory Lead Time |
14 Weeks |
|
Approval Agency |
BSMI, CB, cULus, EAC |
|
|
GST18U28-P1J Manufacturer
MEAN WELL is one of the leading standard switching power supply manufacturers in the world having more than 8,000 standard off-the-shelf models for a complete range of power supply solutions. Specializing in design, manufacturing and marketing of AC-DC switching power supplies, DC-DC converters, DC-AC inverters, and adapters/battery chargers for global markets. MEAN WELL upholds the idea of “your reliable power partner” and is devoted to offering the best power supply product and service. MEAN WELL is now able to provide fast, localized services around the world with its global distribution network fostered by continuous effort and hard work.
