IDEC SE2L-H05LP-Safety Laser Scanner

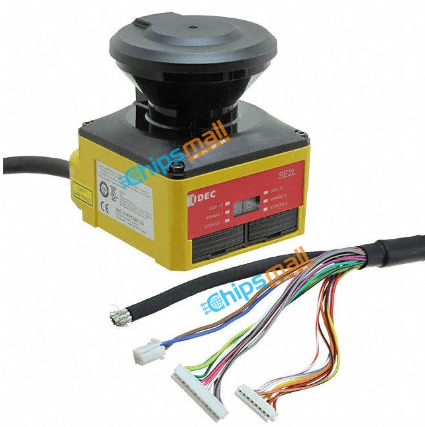

SE2L-H05LP Description

The SE2L-H05LP is a Safety Laser Scanner by IDEC Corporation. It is designed to provide safety monitoring and presence detection in hazardous areas of industrial facilities, helping to prevent accidents and protect workers. The scanner emits and receives laser beams to detect the presence of objects or individuals within its coverage area, and can be configured with various warning and response settings to suit different applications.

SE2L-H05LP Operating Principle

With the SE2L, the distance is measured by the Time of Flight (TOF) principle. The SE2L sends out very short pulses of infrared light. The mirror rotated by the motor sends the infrared light within the scanning range of 270º, and is reflected back from an object within the range.

SE2L-H05LP Features

SE2L-H05LP has a protection range of up to 5 meters and a field angle of 270 degrees, meaning it can cover a relatively large area for its size.

SE2L-H05LP has a compact and lightweight design, making it suitable for installation in various types of machinery or equipment.

SE2L-H05LP supports both horizontal and vertical mounting orientations, providing flexibility in installation options.

SE2L-H05LP uses a reflection-based detection method, which allows it to detect objects regardless of their material or color.

SE2L-H05LP is equipped with four safety zones that can be configured independently, allowing for more precise safety monitoring in specific areas of a facility.

SE2L-H05LP features built-in safety functions such as emergency stop and muting to facilitate quick response to safety hazards.

SE2L-H05LP communicates with other devices or systems through Ethernet/IP or PROFINET protocols.

SE2L-H05LP is compliant with international safety standards such as EN ISO 13849-1 and IEC 61496-1/-3, ensuring high levels of safety performance and reliability.

One SE2L protects a wide area (270º and 5m) and can be used in a variety of applications such as large sized systems or long conveyor lines.

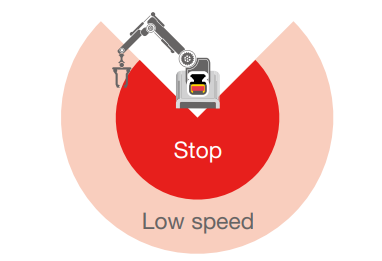

The SE2L is a safety sensor that can detect approach. Stop area can be made smaller by detecting approach at the additional protection zone to start slowdown. (Conventional configuration of one protection zone + two warning zones is possible)

SE2L-H05LP Respond Time

The OFF response time (default: 60ms) for the OSSD signal and ON response time (default: 270ms) can be configured by using the SLS Project Designer. The response time for WARNING 1, 2 is the same as the response time for OSSD.

In dual protection mode, different response time can be set for protection zone 1 and 2 each. The stability of the SE2L can be increased by setting a long response time, but a long safety distance is required. Before setting the response time, the user must perform a risk assessment thoroughly. The configurable response time is shown in the table below. Be sure to add the time taken to switch areas (30 ms).

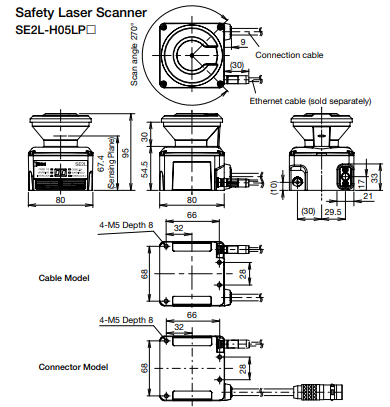

SE2L-H05LP Dimension

SE2L-H05LP Product Parameter

SE2L-H05LP Manufacturer

IDEC (Co., Ltd.) is a world-renowned manufacturer of industrial control and automation components. Founded in 1945, it has a strict quality management system and manufactures high-quality products that are widely trusted by users. It has obtained UL, CSA and ISO9002 standard certification. It has received excellent reviews from all over the world.
